This article applies to:

• MailMarshal 11.1 and above
• ARC (Authenticated Received Chain) functionality

Question:

• What are the steps required to use ARC with MailMarshal?

Background:

ARC (Authenticated Received Chain) is a way of preserving authentication results (SPF, DKIM and DMARC) as an email message passes through multiple servers. Each server in the chain adds a new ARC-Seal header that contains the results of validation on that server.

ARC-Seal processing has two parts:

1. Evaluation of the existing ARC chain for received messages.
   • This can be configured even if you do not choose to extend the chain.
2. Extending the chain so that other servers receiving the message can evaluate it.

Procedure:

Evaluating the ARC chain:

In the MailMarshal Management Console Advanced Settings, add this setting:

• Name: Receiver.EnableARCSeal
• Type: Boolean
• Value: True

Extending the ARC chain:

1. Choose the selector and private key name you will use for your ARC key. The example below uses these values:
   • Selector: selector1
   • Private key: arcseal_private.pem


2. Generate a private and public key for the selector.
   • Note the file name is composed of {Selector}_{Private key}
   • For example using OpenSSL you can use the following commands:
     openssl genrsa -out selector1_arcseal_private.pem 2048
     openssl rsa -in .\selector1_arcseal_private -pubout -out selector1_public.txt


3. Create the appropriate DNS text record using the public key text. This record will typically be created for your main domain.
   • The record is an additional DKIM selector record.
   • An example record name for the example.com domain is: selector1._domainkey.example.com
   • The record text must begin with v=DKIM1;p=
   • Before you enable ARC-Seal processing, ensure the record has propagated.



4. Copy the private key file (pem format) to the Config folder on the MailMarshal Array Manager. It will be copied automatically to all processing servers.

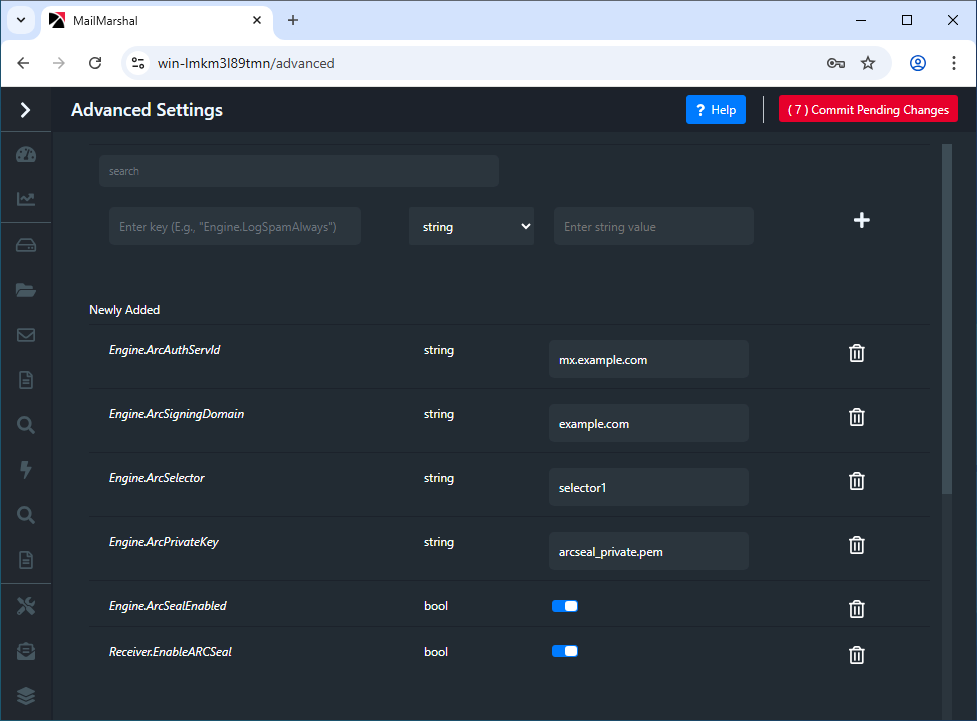

5. Add the following Advanced Settings in the MailMarshal Management Console:
   • Engine.ArcAuthServId
     • Type: String
     • Value: The MX name of your server, for example: mx.example.com
   • Engine.ArcSigningDomain
     • Type: String
     • Value: The primary email domain for your organization, for example: example.com
   • Engine.ArcSelector
     • Type: String
     • Value: The selector you chose in step 1, such as selector1
   • Engine.ArcPrivateKey
     • Type: String
     • Value: The private key name you chose in step 1, such as arcseal_private.pem
   • Engine.ArcSealEnabled
     • Type: Boolean
     • Value: True

Notes:

To rotate the key if required:

• Create and publish a new key with a new selector (steps 1-4 above). Use the same private key name.
• When the key is published and DNS is verified, update the value of Engine.ArcSelector to the new selector value.
