This article applies to:
- Trustwave MailMarshal (SEG)
- Trustwave ECM (MailMarshal Exchange)
- WebMarshal
- Marshal Reporting Console
Question:
- How do I use the Support Tool?
Information:
The Marshal support tool has been developed to help the Trustwave Technical Support team gather information about installed software and configuration. The tool produces a single .zip file that contains essential information to help the support team debug specific issues.
The tool can gather information about the following products:
- Trustwave SEG (MailMarshal SMTP) version 6.0 or above
- Trustwave ECM (MailMarshal Exchange) version 7.0 or above
- WebMarshal version 6.0 and above
- Marshal Reporting Console
- Marshal virus scanners (Bitdefender for Marshal, McAfee for Marshal, and Sophos for Marshal)
- Web Components
- IIS
Note: For the Trustwave SPE (Service Provider Edition) Support Tool, see Q15019.
Installation
Download the support tool from https://www.marshal.com/supporttool/download (right click, save as. You may see a security warning). The tool will also attempt to update itself automatically, as noted below.
- The current version of the tool (1.14 and above) is packaged with .NET 7 runtimes and does not have any software prerequisites.
Using the tool
Repeat the following steps on each server of interest, as directed by Technical Support.
- Copy the tool to the server.
- Double click to run the tool.
- Note: On startup, the tool checks for updates to functionality. This feature requires access to the URL http://www.marshal.com/supporttool/download
- If the tool cannot connect, it raises a warning.
- If necessary, retrieve the latest version manually as described above.

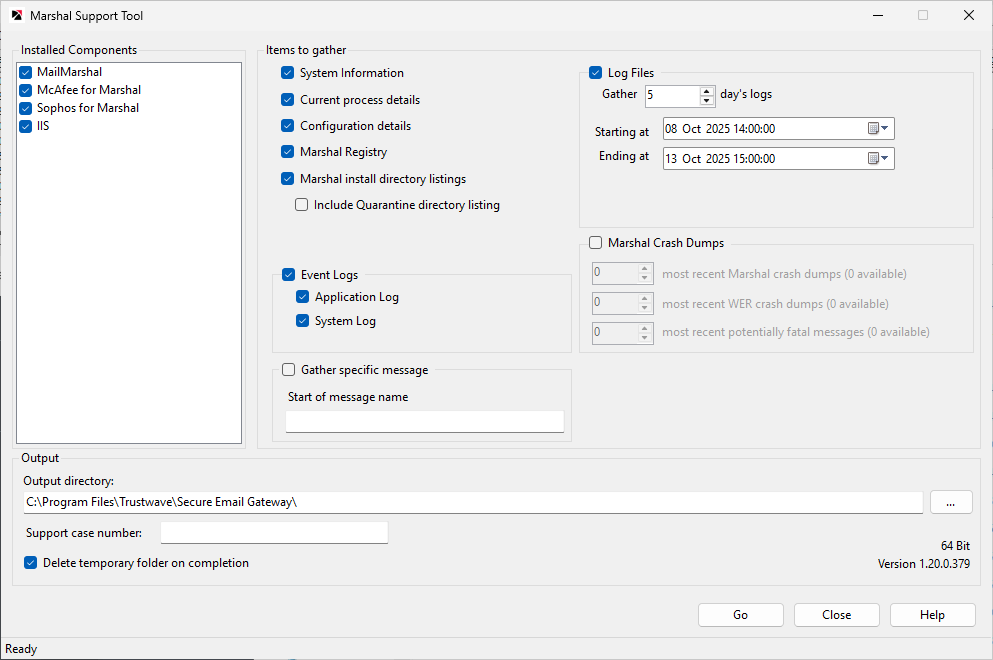

- The main window of the tool appears as shown below. The fields and selections differ depending on the installed software.
- Select the items to include, as directed. Clear the selections for items you do not want to include. See below for explanations of each selection.
- Choose an output directory.
- Enter a support case number.
- Click GO to run the tool. The tool gathers data into a folder, and then creates a single compressed file.
- NOTE: This tool can require significant disk space, particularly if you include multiple dump files. In rare cases it could consume all available space. If not enough space is present, the tool raises a warning: Not enough free space available to package into zip file.
- The status bar at the bottom of the window shows the progress. You can cancel the process if necessary.
- When the tool is finished, click Close to exit.
- Upload the file to Trustwave as directed by Technical Support.
- Note: Wait for the tool to create the zip file. (The tool creates a temporary folder and then zips the content. Do not zip the folder manually - it will not contain all required items.)
The fields on the window are defined as follows:
- Installed Components
- Shows the related software that is installed on this computer. Select the components for which you want to include detailed information such as logs and configuration details.
- Installation logs (if any) are gathered for all selected components regardless of other selections.
Items to gather
- System Information
- Includes a listing of the system hardware and operating system information.
- Current process details
- Includes a listing of processes running on the server.
- Configuration details
- Includes the XML or text files that define configuration of the selected software.
- Marshal Registry
- Includes a copy of the registry hive for all components that are present on the server.
- Marshal install directory listings
- Includes file and version information for files in the installation directories of all selected components.
- For SEG, optionally select Include Quarantine directory listing to list all messages in quarantine and archive (only if required, as the file will be much larger and take longer to generate)
- Event logs
- Includes Windows Event Log information. If you include the event logs, choose to include Application and/or System logs by checking the boxes.
- Gather specific message
- Attempts to include one or more mail message or Sent History files. Enter the first few characters of the message name (for example B89f00). This option is only available when running the tool on a MailMarshal processing node.
- Log files
- Includes the text log files generated by the selected components. By default the last 5 days of logs are included. Use the menus to select the range of dates to include.
- Marshal Crash Dumps
- Includes one or more types of diagnostic information. Shows the number of each type that are available.
Select the number of each type to include. The default is 1 of each available type. The most recent available are included.
- Most recent Marshal crash dumps
- Includes
.mdmp files created by the selected components when recovering from an error. - Most recent WER crash dumps
- Includes the Windows Error Reporting data from the recent issues.
- Most recent potentially fatal messages
- Includes email message files that are marked as suspect because they were being processed at the time of a crash.
Output
- Output Directory
- Enter the location where the compressed file should be created. The default location is the desktop. Click [...] to browse the local computer.
- Support case number
- Enter the case number as provided by Technical Support.
Version: The installed version of the Support tool.
Notes:
- This tool simply gathers existing information from the system and logs.
- There is no need to restart any services before or after running the tool (unless specifically requested by Technical Support).
- The tool does not affect any running services and it does not require any downtime.
- The tool runs as Administrator to ensure full access on servers where UAC is enabled.
- Although this tool is able to gather information from MailMarshal SMTP/SEG and WebMarshal versions from version 6.0, many older versions are no longer supported. Technical Support may ask you to upgrade to a supported version as a first step to resolve any issues. For a list of supported versions of products, see Trustwave Knowledgebase article Q10920.
- The current version of the tool does not offer automatic upload. Support will provide instructions to upload to the Trustwave Portal.
